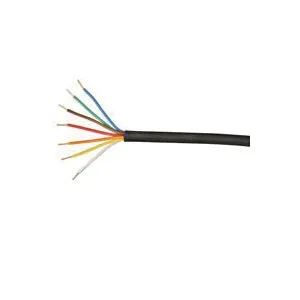

Underground sprinkler system wire. 18/7 solid, 30 V RMS max. Used for sprinkler control systems. Soft annealed solid copper per ASTM B3-90. Polyethylene insulation and jacket. 18 AWG bare copper. Cable consists of 7 bare copper insulated conductors with an overall outer jacket diameter of 0.268 in. UL listed.
Product Details
Manufacturer:
Manufacturer's Part Number: 547070408
Show me more
Product Features
- Sunlight resistant
- PE jacket with ripcord
- Direct burial solid BC 30V
- Sequential footage marking
Product Specifications
| Conductor Insulation | Thermoplastic |
| Number of Conductors | 7 |
| Operating Temperature | -20 to 75 deg C |
| Sheath Diameter | 0.268 in |
| Stranded/Solid | Solid |
| Voltage Rating | 30 V |
| Wire Size | 18 AWG |
